I asked on Twitter about what CSS topics I should write about? One of the suggestions that caught my eyes is about how to think about implementing a layout in CSS. That includes thinking about the possible solutions, and asking a lot of questions to get it right.

In this article, I will show you my approach to think about a new layout, and how you can apply these steps to your work. Are you ready? Let’s dive in.

Put the design details aside

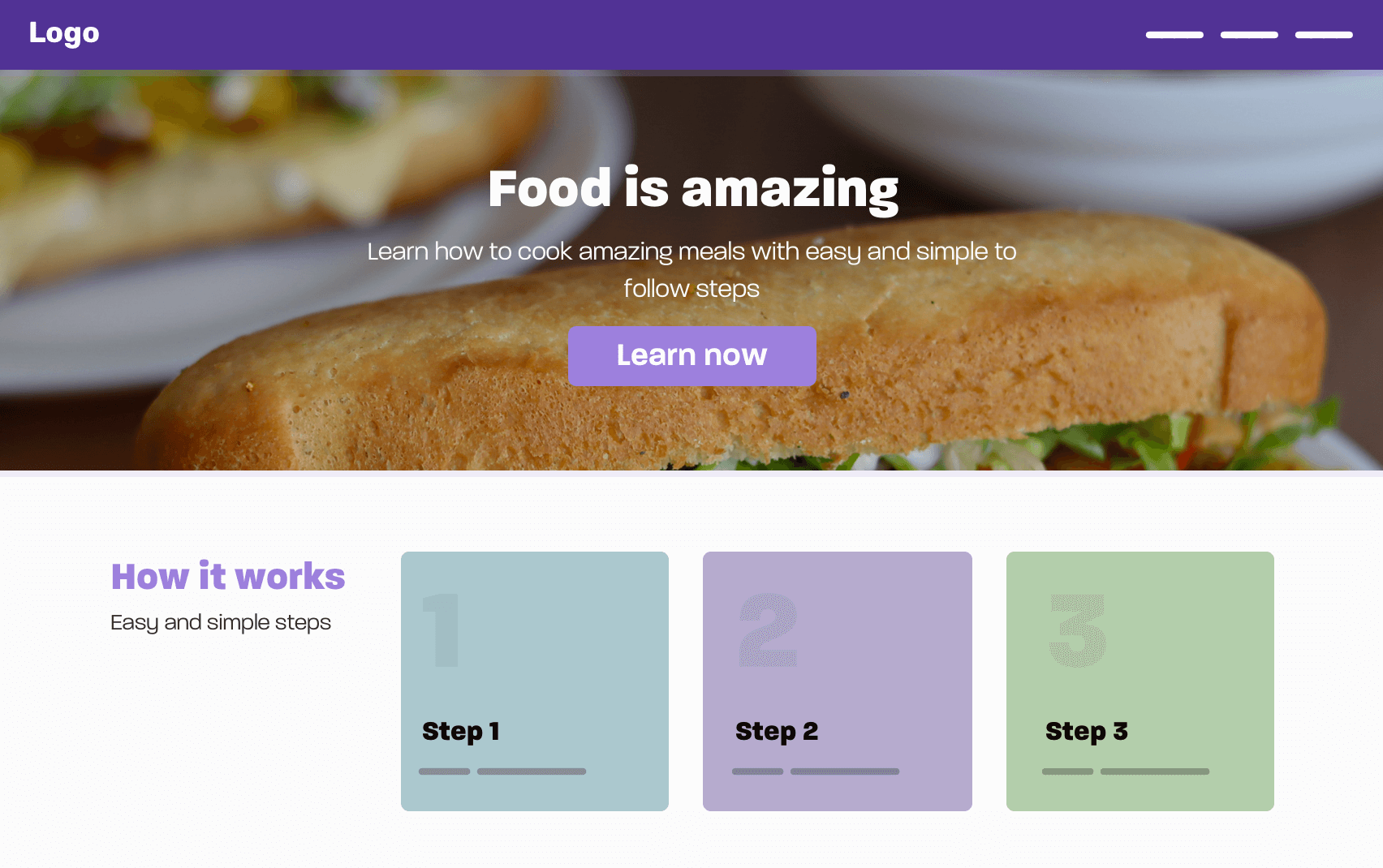

The first thing that I usually do is putting the design details aside. That means, I highlight the main parts of a specific layout and then start thinking about them. I know that details are important, but this is temporary, so we can focus on the high-level details first. Consider the following UI:

In this design, we have the following:

It can be tempting to start thinking about the small details first, rather than high-level thinking. If I were asked to visualize that, I will imagine that a front-end developer must wear a pair of glasses that let him/her see the high-level layout items only.

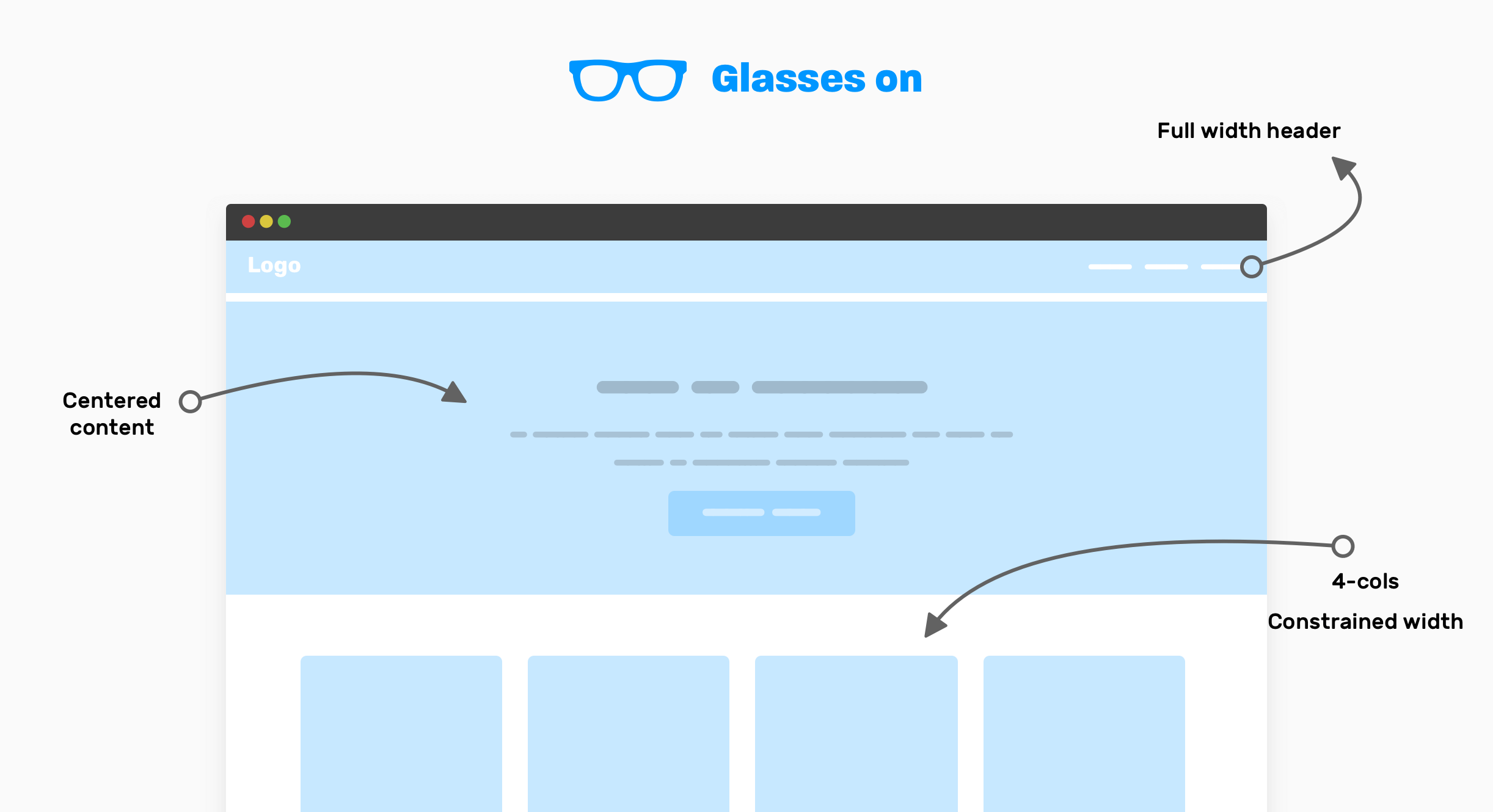

Notice that with the glasses on, you can only see the important high-level components of the UI. This can help you to think about how to layout the components, instead of thinking about the little bits for each one.

Here is how I think about it:

Now, when I want to work on the above in code, I will make a quick prototype like this, just to quickly see some progress.

<header></header>

<section class="hero">
  <!-- A div to constraint the content -->
  <div class="hero__content"></div>
</section>

<div class="wrapper">
  <!-- 4-columns layout -->
  <section class="grid-4"></section>
</div>

Since we have a 4-columns section, I will go with CSS grid for this. It’s a perfect use-case for it.

.wrapper {
  margin-left: auto;
  margin-right: auto;
  padding-left: 1rem;
  padding-right: 1rem;
  max-width: 1140px;
}

.hero__content {
  max-width: 700px;
  margin-left: auto;
  margin-right: auto;
}

.grid-4 {
  display: grid;
  grid-template-columns: repeat(4, 1fr);
}

This is quick high-level thinking with the glasses on. I still didn’t even think about responsive design. I have some questions regarding details of some components but I won’t dig into that for now. Stay tuned for this for the details section at the end of the article.

Now that you got the idea, I will go through more examples of high-level thinking so you can get better at it.

Article page

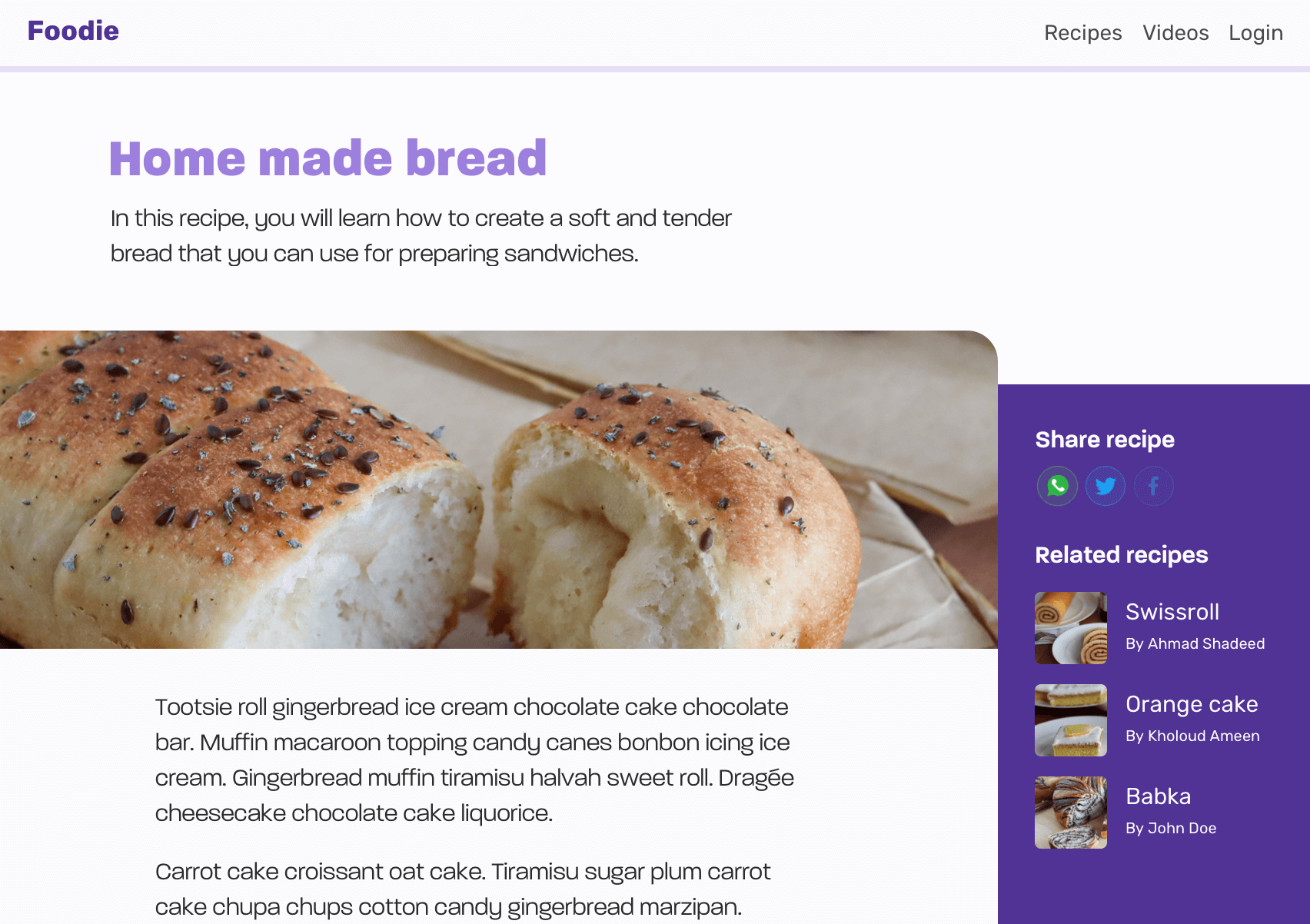

In this example, we have an article page layout. Here is the UI, which contains:

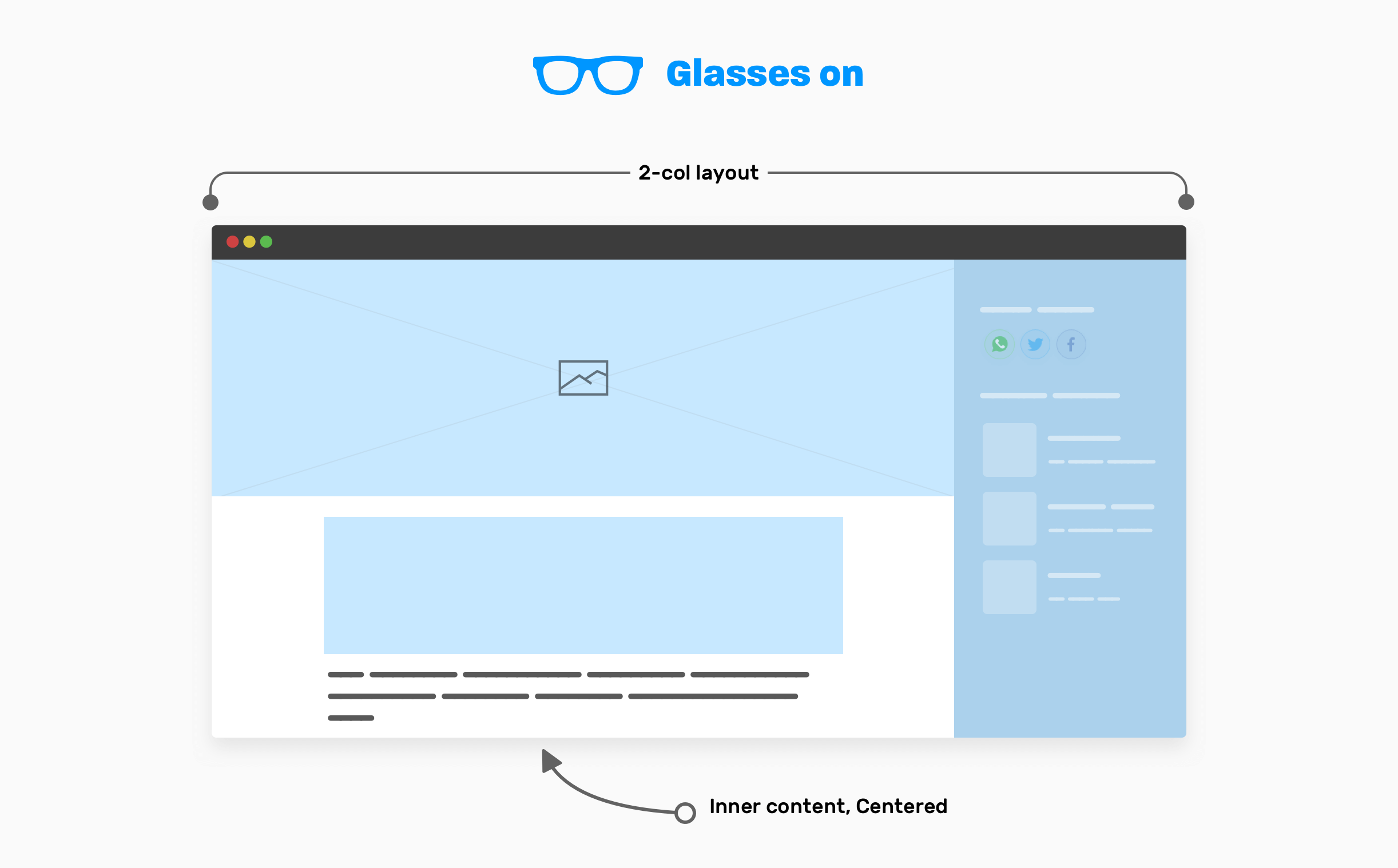

Now that you have an idea about how the design looks, let’s wear our glasses on to see only the high-level details.

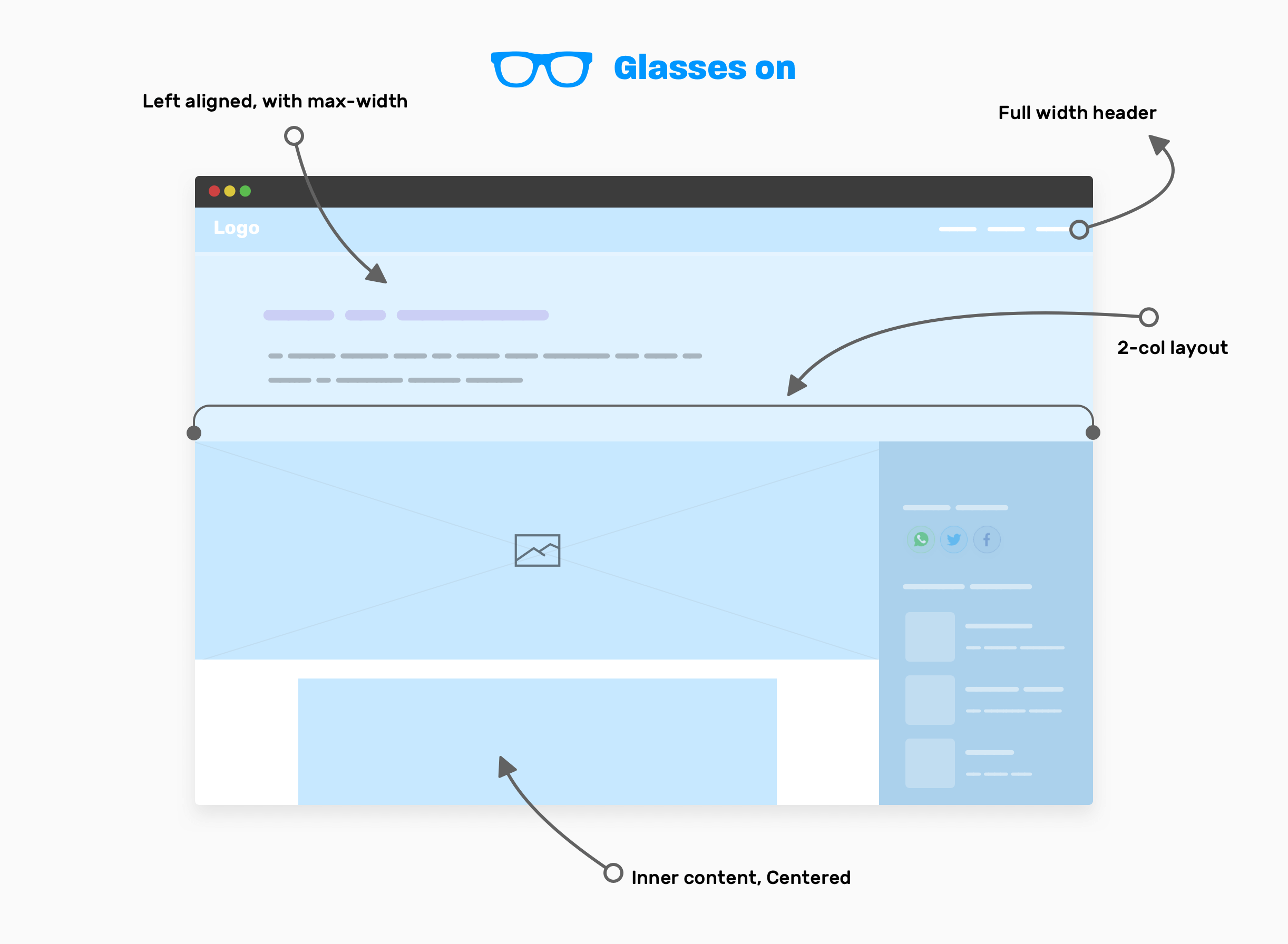

With our glasses on, here are the high-level components that we have:

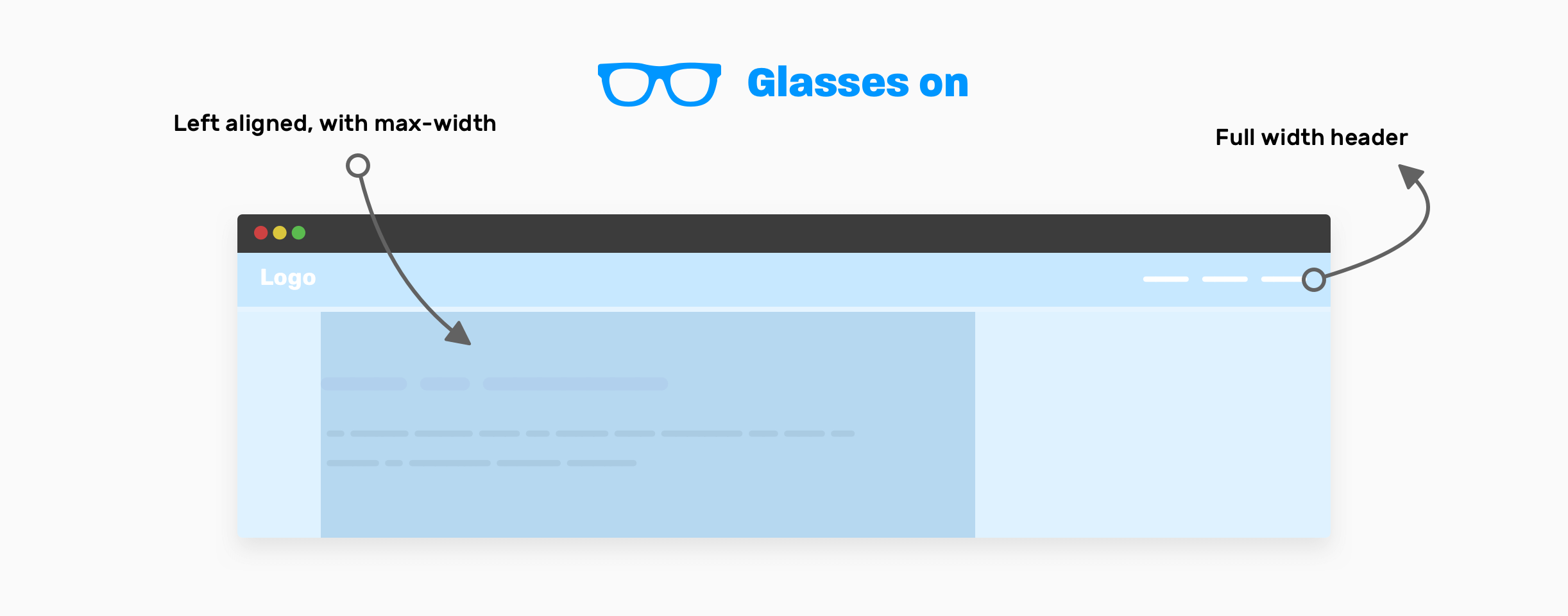

Article - Page header

There is no need to use any layout method here. A simple max-width will do the job. Make sure to add horizontal padding to avoid the edges being stick to the edges on smaller viewports.

.page-header {
  max-width: 50rem;
  padding: 2rem 1rem;
}

Article - Main and sidebar

The main element is taking the full width of the viewport minus the sidebar width. Usually, a sidebar is expected to have a fixed width. For that, using CSS grid is perfect.

.page-wrapper {
  display: grid;
  grid-template-columns: 1fr;
}

@media (min-width: 800px) {
  grid-template-columns: 1fr 250px;
}

For the inner content of the article, it should be constrained within a wrapper.

.inner-content {
  max-width: 50rem;
  margin-left: auto;
  margin-right: auto;
  padding-left: 1rem;
  padding-right: 1rem;
}

Now that you got the idea of the high-level decision that you need to take while building a layout, the next step is to think about handling each section in the design.

Digging into the details

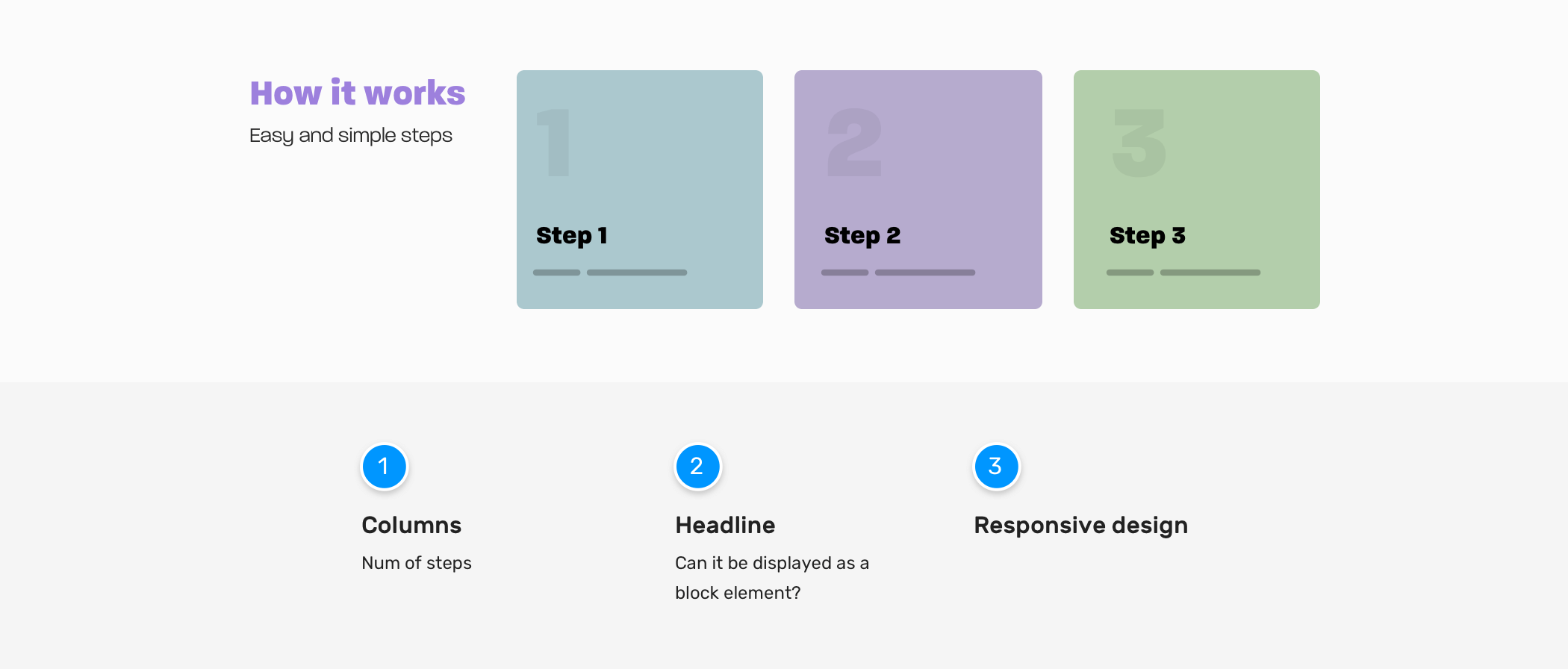

How it works

In the first example of the article, I said that I will dig into the details of how it works section later. Here we go.

Columns

Headline

Responsive design

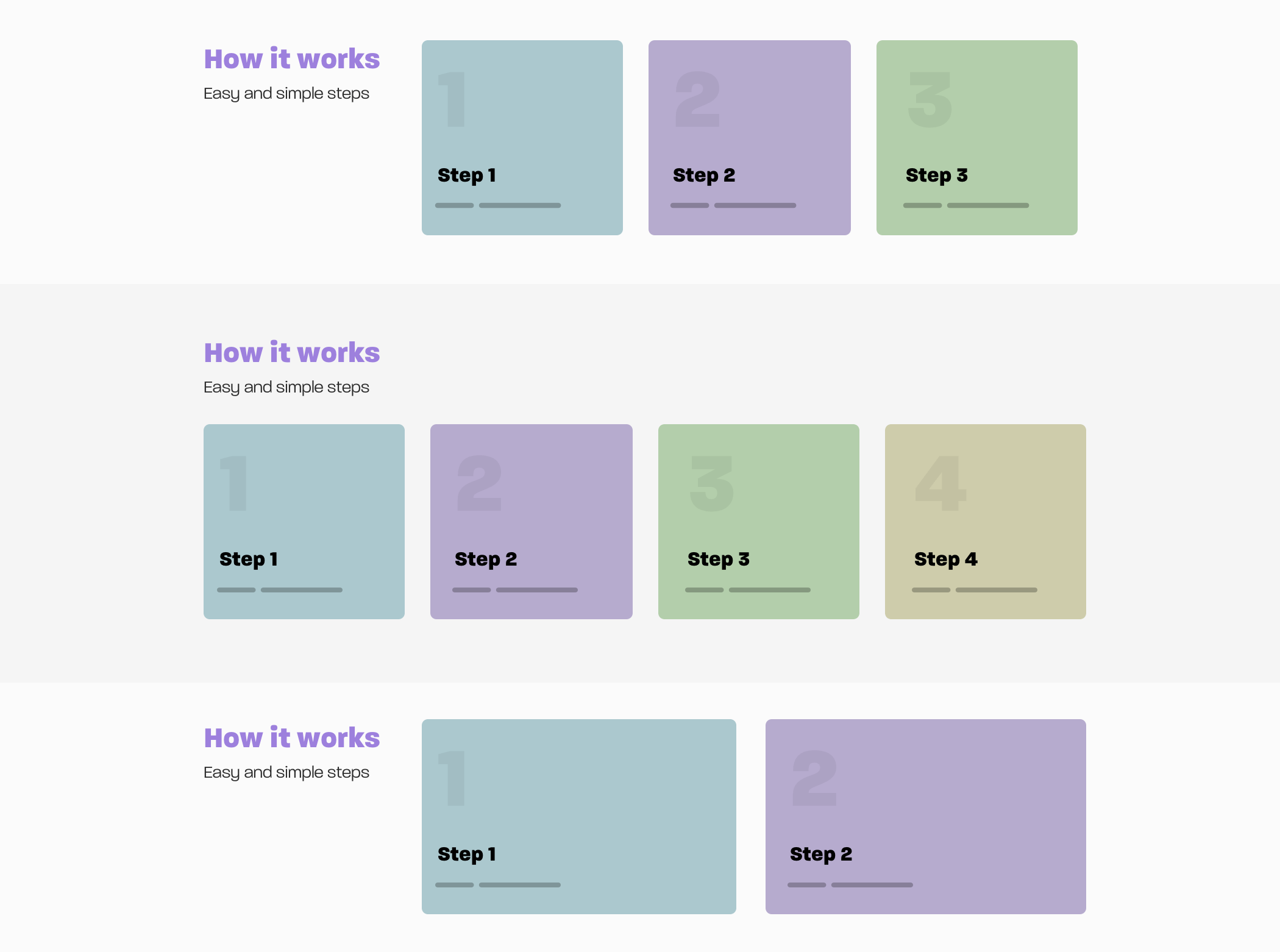

Here are some possible scenarios for the section. What do you think? As a front-end developer, you’re expected to consider such edge cases. It’s not just about creating a UI without considering such hidden bits.

I can’t get into the specifics of how to code each variation in there, since the article is focused on the thinking process, but I’m eager to show you something cool.

Notice in the first and third variations in the previous mockup, the number of steps is 3 vs. 2. Can we make our CSS dynamic to handle that for us? I mean, to expand the items when they are only two.

<div class="wrapper">
  <section class="steps">
    <div>
      <h2>How it works</h2>
      <p>Easy and simple steps</p>
    </div>
    <div class="layout">
      <div class="layout__item">
        <article class="card"></article>
      </div>
      <div class="layout__item">
        <article class="card"></article>
      </div>
      <div class="layout__item">
        <article class="card"></article>
      </div>
    </div>
  </section>
</div>
.steps {
  display: grid;
  grid-template-columns: 1fr;
  grid-gap: 1rem;
}

@media (min-width: 700px) {
  .steps {
    grid-template-columns: 250px 1fr;
  }
}

.layout {
  display: grid;
  grid-template-columns: 1fr;
  grid-gap: 1rem;
}

@media (min-width: 200px) {
  .layout {
    grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
  }
}

I used CSS grid minmax() and the auto-fit keyword. This is helpful in such cases where the number of cards can increase or decrease. See the video below:

Hero section

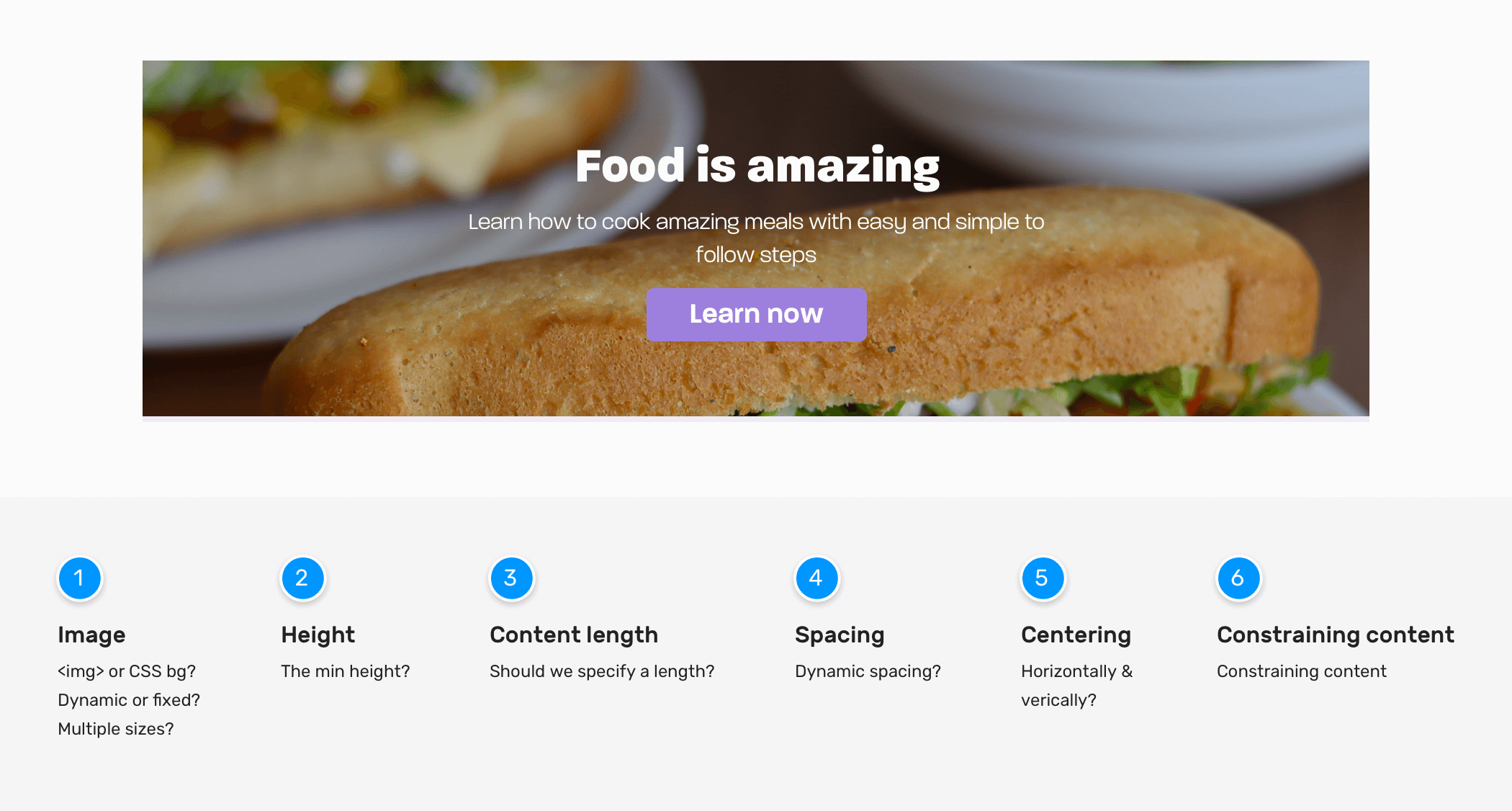

The first thing I do when I want to build a new section or component is to ask lots of questions. For the hero section, here is what I’m considering.

Hero Image

Hero height

Content length

Spacing between elements

Content Centering

Constraining content

Responsive design

Depending on the nature of the project you’re working on, you should find answers to these questions. This will help you to determine how the hero component needs to be built. Sometimes, it can be hard to get an answer to each question, but the more you asked, the higher the likelihood of getting a good bug-free result.

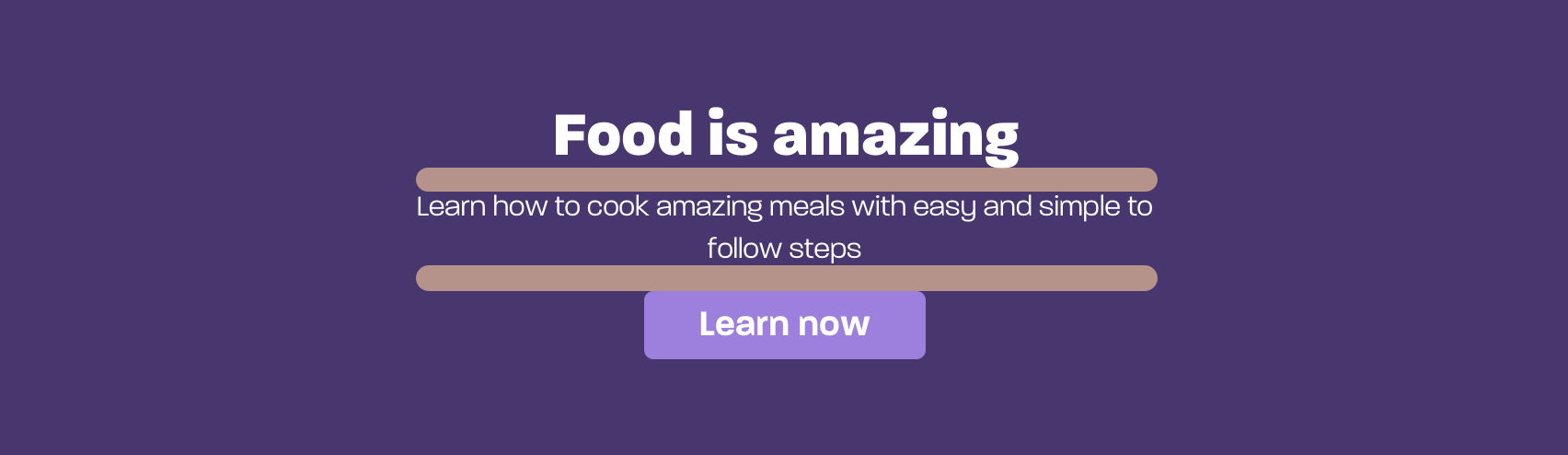

In this component, I will tackle the spacing between child elements. I like to use flow-space utility. I learned about it from Piccalil blog by Andy Bell. The goal is to provide spacing between direct sibling elements.

<section class="hero">
  <!-- A div to constraint the content -->
  <div class="hero__content flow">
    <h2>Food is amazing</h2>
    <p>Learn how to cook amazing meals with easy and simple to follow steps</p>
    <a href="/learn">Learn now</a>
  </div>
</section>
.flow > * + * {
  margin-top: var(--flow-space, 1em);
}

Final thoughts

As you’ve seen, the process of implementing a compoennt is not only about making it an exact match of the design, but also to ask and think about edge cases. I hope you learned at least one thing from this article.

Thank you for reading.
